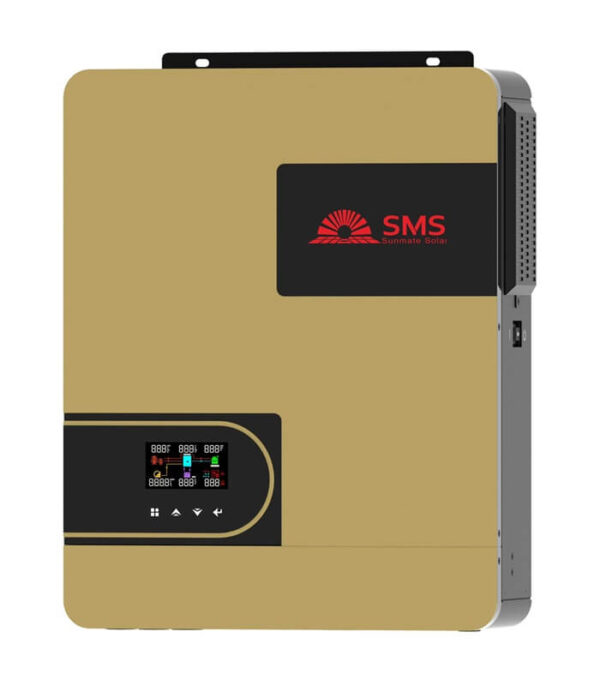

SMS 6.2KVA 48V Hybrid Inverter

Description

SMS-6.2KVA 48V Hybrid Inverter: Get the Best out of Solar Energy

Experience the ultimate combination of reliable backup power and clean energy generation with the SMS-6.2KVA 48V Hybrid Inverter! This powerhouse delivers a robust 6200W of continuous output, ensuring your essential appliances remain operational during outages. Plus, the built-in solar charger allows you to harness the sun’s energy to reduce your dependence on the grid and potentially slash your electricity bills.

Key Features:

1. Constant Power (6200W): Say goodbye to power cuts! The SMS-6.2KVA seamlessly switches on during outages, providing uninterrupted power for your critical devices.
2. 48V Battery Compatibility: Integrates seamlessly with a 48V battery system (sold separately) to store excess solar energy and provide backup power when needed.
3. Embrace Solar Energy: Connect solar panels (sold separately) to the inverter and utilize the sun’s power to recharge your batteries and offset your electricity consumption.
4. MPPT Solar Charging Technology: Maximizes solar energy harvest from your panels by operating at their ideal voltage output for optimal efficiency.
5. Wide MPPT Voltage Range (60-450Vdc): Accommodates various solar panel configurations by accepting a broad MPPT voltage range.
6. High Conversion Efficiency (up to 97%) : Minimal energy loss during operation translates to cost savings.
7. Selectable Grid Output Voltage (220Vac, 230Vac, or 240Vac): Configure the inverter to match your existing electrical system.
8. Grid Charging Capability: Charge your batteries from the utility grid during off-peak hours for additional savings (may require additional utility meter).
9. Dual Load Outputs: Power essential appliances and even run a separate circuit for additional devices with the 6200W full load capacity and a dedicated 2066W second load output.

Technical Specifications:

General Spec:

• Model Name: SMS-6.2KW-48V
• Model Number: SMS-6.2KW-48V
• Color: Golden and Black
• Operating Temperature Range: -10°C to +50°C
• Certifications: RoHS Compliant, CE
• Manufacturer: Made in China
• Dimensions and Weight: Not specified

PV Input (Solar Input):

• Nominal Operating Voltage: 240Vdc
• Maximum PV Voltage (Vmax PV): 500Vdc
• PV Input Voltage Range: 60Vdc to 450Vdc
• Maximum Input Current (Imax PV): 27A
• Full Load MPPT Range: 240Vdc to 450Vdc
• Rated Power: 6500W
• Maximum Solar Charging Current: 120A

Grid/AC Output (Utility Output):

• Nominal Output Voltage: Selectable 220Vac, 230Vac, or 240Vac
• Feed-in Grid Voltage Range: 195Vac to 253Vac
• Feed-in Grid Frequency Range: 49Hz to 51Hz ± 1Hz
• Nominal Output Current: 27.0A
• Power Factor Range: Greater than 0.99
• Maximum Conversion Efficiency (DC/AC): 97%
• Nominal Operating Frequency: 50/60Hz (selectable)

Two Load Output Power:

• Full Load: 6200W
• Maximum Main Load: 6200W
• Maximum Second Load: 2066W
• Main Load Cut Off Voltage: 44Vdc
• Main Load Return Voltage: 52Vdc

AC Input (Grid Charging):

• Nominal Operating Voltage: 230Vac
• Maximum Input Current: 40A
• Nominal Operating Frequency: 50/60Hz (selectable)
• Surge Power: 12400VA
• Maximum AC Charging Current: 100A

Battery:

• Battery Voltage Range: 40Vdc to 63Vdc
• Maximum Battery Current: 125A

Invest in a brighter future with the SMS-6.2KVA 48V Hybrid Inverter!
