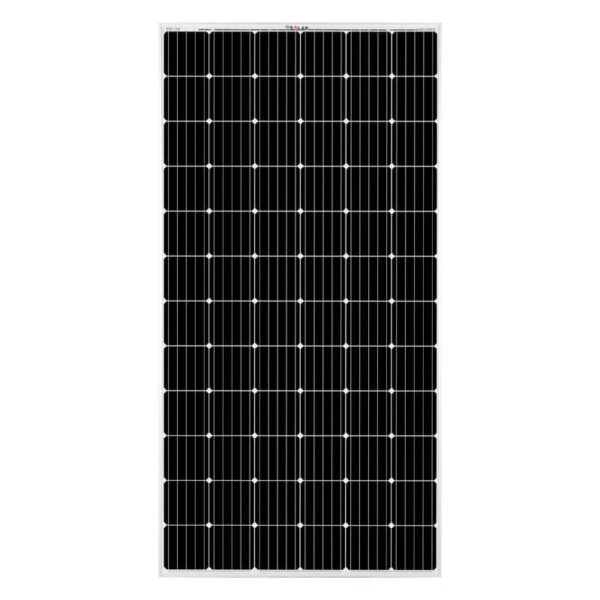

9Solar 400 Watt Monocrystalline Solar Panel – 72 Cells

Description

The 9Solar 400W monocrystalline solar panel is a powerhouse built for exceptional performance and long-lasting durability. Featuring 72 high-efficiency cells and advanced technology, this panel is ideal for large residential and commercial solar power systems.

Mechanical Specification:

1. Cell Type: Mono 166*83mm
2. Dimension (LWT): 2094103835mm
3. Weight: 23.5kg
4. Packing: Carton or Pallet as per requested
5. Output Cable (including connector): 4.0mm2, 300mm in Length or as per requested
6. No. of Cells: 72 (6*24)
7. Glass: 3.2mm High Transmission, Antireflection Coating
8. Junction Box: IP68, 3 Bypass Diodes
9. Connector: MC4

Operating Parameters:

1. Maximum System Voltage: 1500CDV
2. Operating Temperature: ~40°C to ~+ 85°C
3. Maximum Series Fuse Rating: 25A
4. Snow Load, Frontside: 5400Pa
5. Wind Load, Frontside: 2400Pa
6. Normal Operating Cell Temperature: 45°C ±2°C
7. Application Level: Class A
8. 9Solar Technology solar panels are the epitome of efficiency, versatility, and sustainability in the realm of solar energy. With their exceptional performance and adaptability, they unlock the true potential of harnessing solar power.

Key Features:

1. Excellent PID resistance ensures consistent performance over time.
2. Long-term cooperation with Tier1 brands guarantees reliability and quality.
3. High power output maximizes energy generation potential.
4. High transmission, Low Iron Tempered Glass enhances efficiency.
5. Bypass Diodes Protection ensures reliability in case of shading.
6. Salt Mist and Ammonia Resistance Test ensures durability.
7. Industry’s lowest thermal coefficient of power ensures efficiency in varying temperatures.
8. Excellent low irradiance performance guarantees power generation even in low-light conditions.
9. Module Imp binning radically reduces string mismatch losses, optimizing energy production.
10. Unlock the true potential of harnessing solar power with 9Solar’s advanced technology. Trust in us to provide sustainable energy solutions that make a difference.
